Description

Specification Details

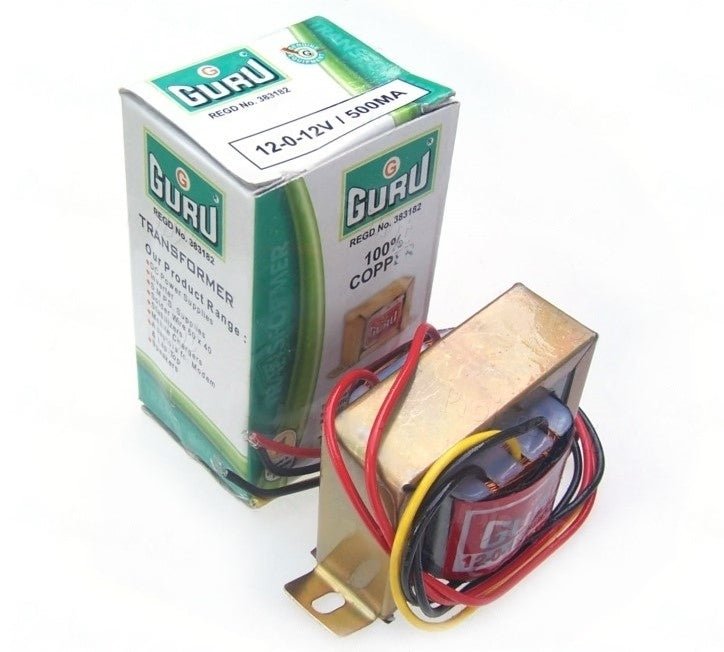

Transformer Type Step-down, centre-tapped
Primary Input Typically 230 V AC; verify unit label
Operating Frequency 50 Hz for the standard Indian mains version
Secondary Output 12-0-12 V AC
Output to Centre Tap 12 V AC from either outer lead to centre tap
End-to-End Output 24 V AC between outer leads
Rated Secondary Current 500 mA (0.5 A)
Output Type Unregulated AC
Core Construction Laminated iron core
Mounting Chassis mounting with metal fixing bracket
Secondary Connections Three leads, including centre tap
Dimensions and Weight Manufacturer-dependent
Applications Linear power supplies, rectifier experiments and dual-rail supply projects
