Description

Specification Details

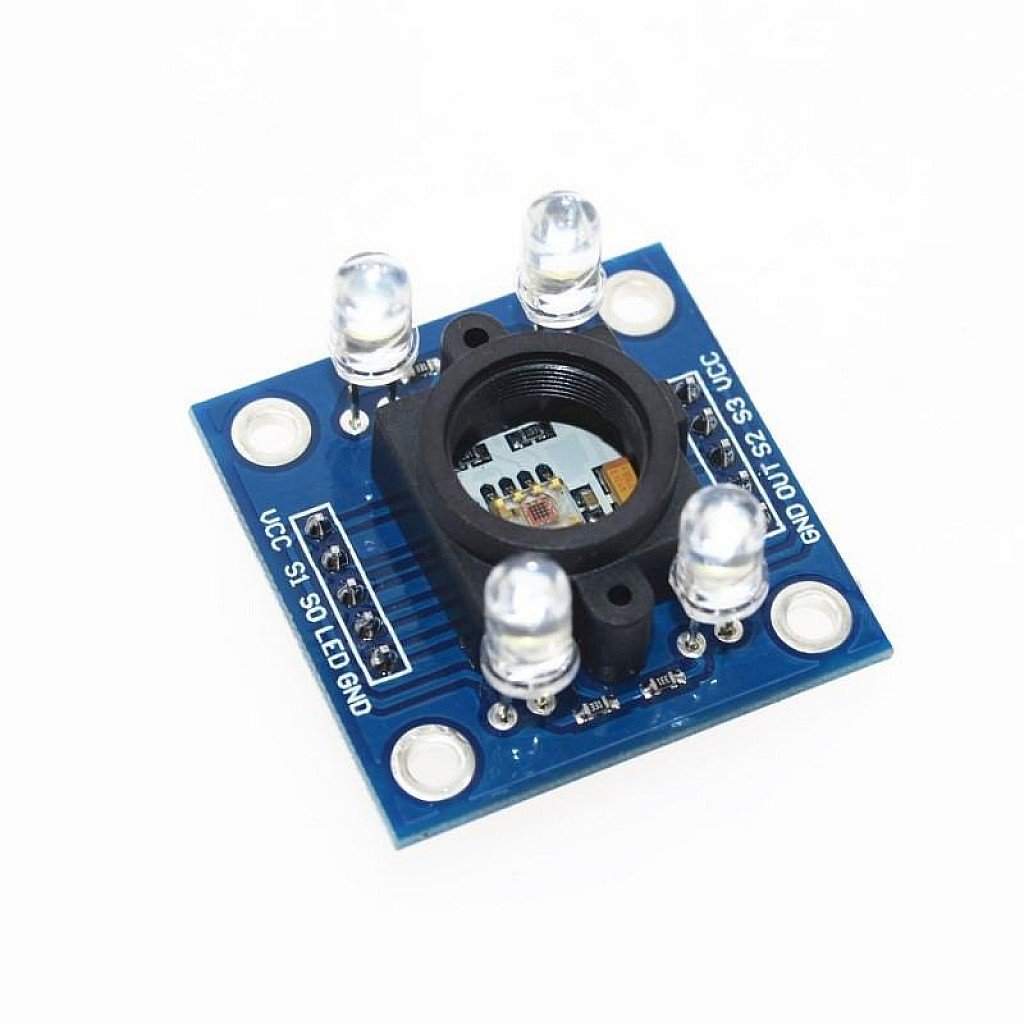

Sensor type Programmable color-to-frequency sensor
Detection channels Red, green, blue and clear/unfiltered
Output Digital square wave; frequency proportional to light intensity
Frequency scaling Selectable 2%, 20% or 100%
Illumination Four onboard white LEDs
Interface GPIO control and frequency measurement; not I²C
Filter selection S2 and S3
Frequency scaling control S0 and S1
Signal output OUT
Power connections VCC and GND
LED control LED pin
Mounting PCB with four mounting holes
