Description

Specification Details

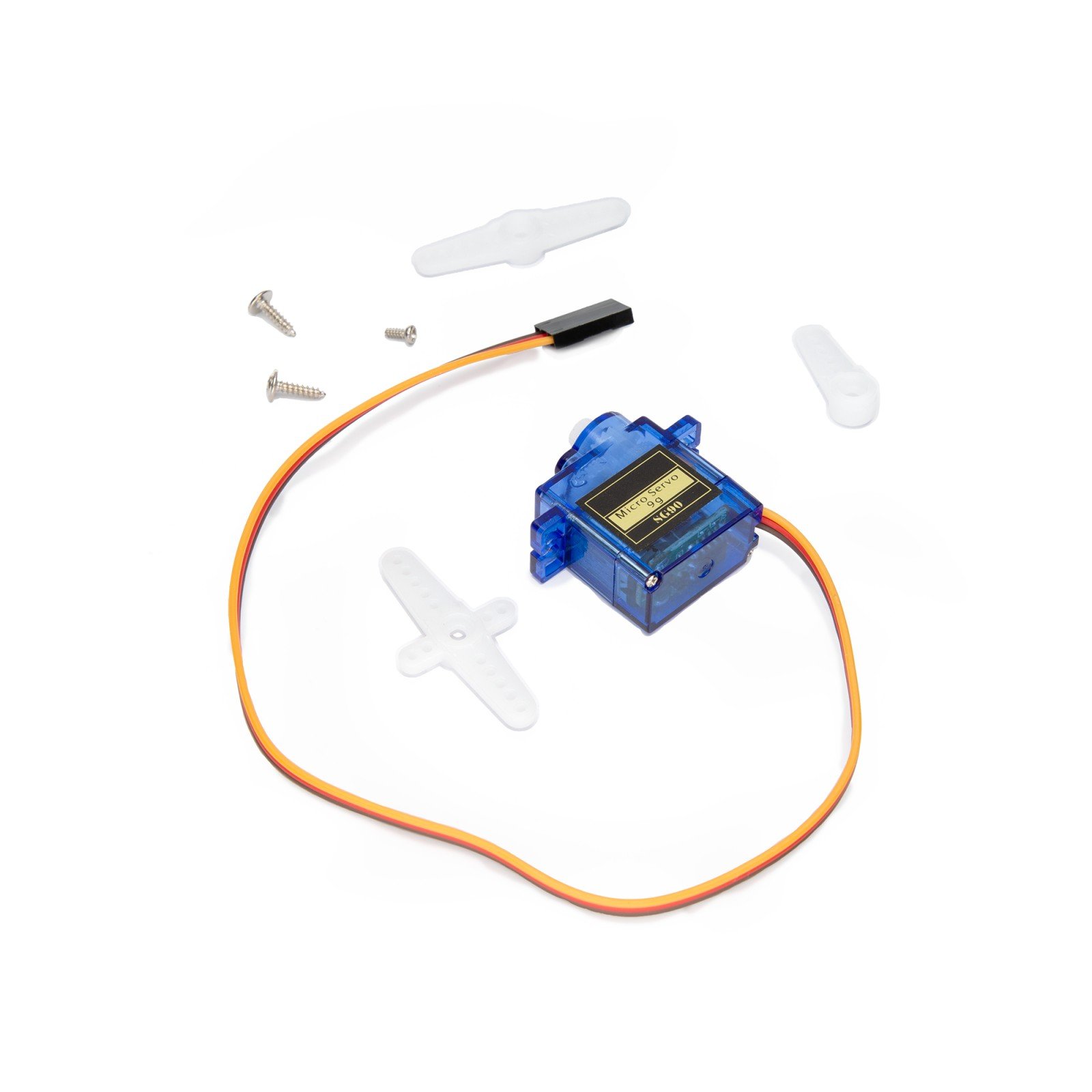

Model / Type SG90-type micro servo
Weight Approximately 9 g
Rated Voltage 4.8 V DC for the reference model
Stall Torque 1.8 kgf·cm at 4.8 V
Operating Speed Approximately 0.12 seconds per 60° at 4.8 V
Gear Material Plastic/POM gears
Control Method Servo pulse signal
Rotation Range Version-dependent; confirm before listing as 180°
Dimensions Approximately 23 × 12.2 × 29 mm
Operating Temperature 0°C to +55°C
Connector Three-wire servo connector
Accessories Shown Servo horns and mounting screws
Applications Mini robots, grippers, RC models and project mechanisms
