Description

Specification Details
Model SSR-40DA
Relay type Solid-state, DC-to-AC
Channels 1

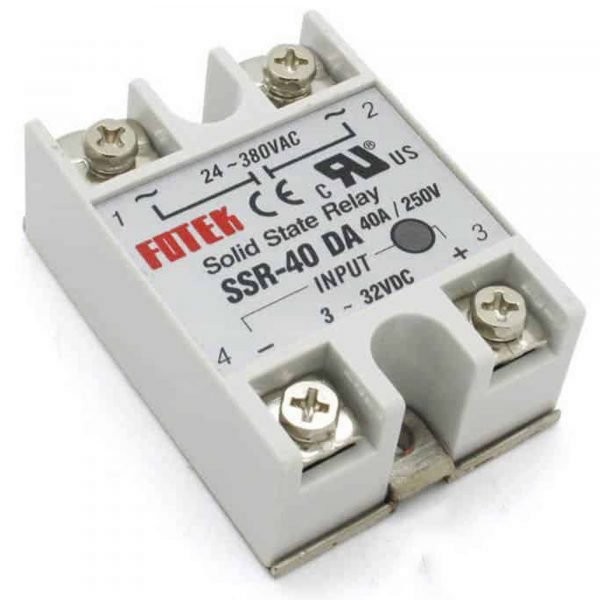

Control input 4–32 V DC in current FOTEK specifications; pictured version marked 3–32 V DC
Load voltage 24–380 V AC
Maximum rated load current 40 A, subject to cooling and operating conditions
Load terminals 1 and 2 — AC load circuit
Control terminals 3 (+) and 4 (−) — DC input
Connections Screw terminals
Mounting Panel / heat-sink mounting
Applications AC heaters, temperature regulation and industrial switching
