Description

Specification Details

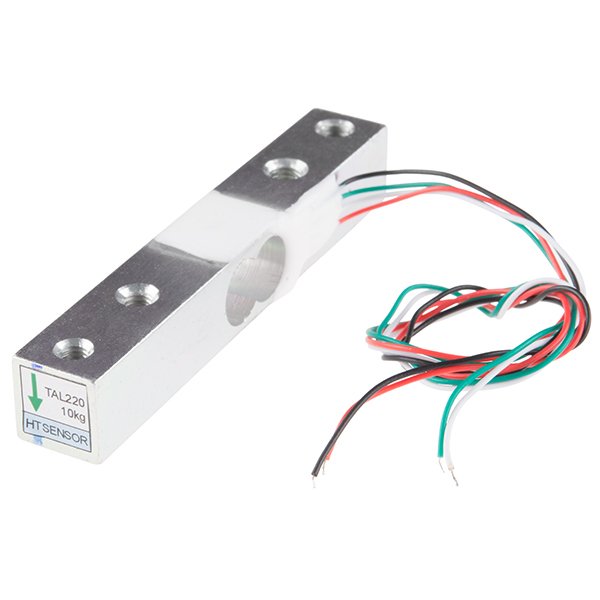

Model TAL220
Rated Capacity 10 kg
Sensor Type Parallel beam strain-gauge load cell
Body Material Aluminium alloy
Bridge Configuration Four-wire Wheatstone bridge
Excitation Voltage 5–10 V DC
Rated Output 1.0 ±0.15 mV/V
Combined Error ±0.05% of full scale
Repeatability ±0.03% of full scale
Input Resistance 1000 ±15 Ω
Output Resistance 1000 ±10 Ω
Operating Temperature −10°C to +55°C
Dimensions Approximately 80 × 12.7 × 12.7 mm
Mounting Two M4 and two M5 mounting holes

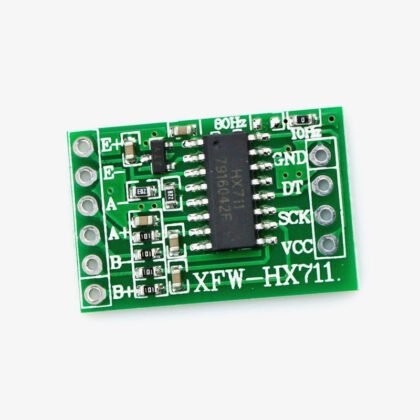

Interface Required HX711 or equivalent load-cell amplifier/ADC
Applications Digital scales, dispensing systems and weight monitoring
